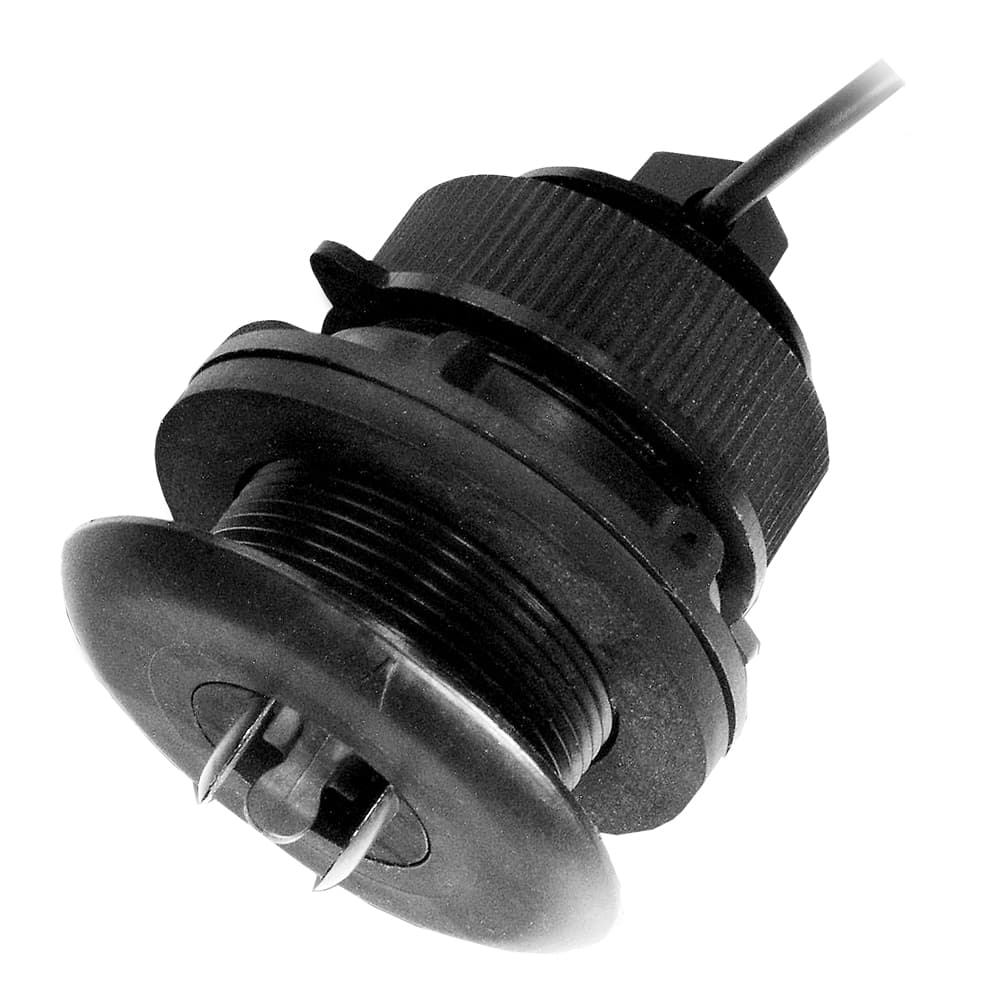

Raymarine ST300 Shorty Thru-Hull Transducer E26008 Speed & Temp
$143.99
Only 2 left - ships same or next business dayEstimated delivery: Fri, Nov 20 – Wed, Nov 25- Minimum Install Headroom
- 153 mm (6 in)
- Overall Height
- 75 mm (2.96 in)
- Cable Length
- 10 m (33 ft) with ISO spade connectors
- Cable Exit
- Right-angle
Free shipping on every order
Pairs well with
- Raymarine HV-100 HyperVision Transducer Transom Mount Bracket R70651 BlackTransom mount bracket needed to install transducer on hull$70.99
The Raymarine ST300 Shorty (E26008) is a through-hull transducer that measures boat speed and water temperature, feeding analog instruments like the i40, i50, ST40, ST60, ST60+ and iTC-5. Its ultra-low-profile housing protrudes only about 5 mm beyond the hull to minimize drag, needs just 153 mm of below-floor headroom, and includes a self-closing water valve so the paddlewheel can be serviced without draining the boat. A 10 m cable with ISO spade connectors and a right-angle exit, plus the included P398 countersunk housing for flush mounting, round out the package.
Product details
Brand new in original packaging.
- Raymarine P371 S/T Shorty through-hull transducer (MPN E26008) senses boat speed and water temperature.
- Ultra-low-profile housing protrudes only about 5 mm (3/16 in) beyond the hull, minimizing drag.
- Fits tight bilge spaces with as little as 153 mm (6 in) of below-floor headroom; overall height is 75 mm (2.96 in).
- Includes a 10 m (33 ft) cable with ISO spade connectors and a space-saving right-angle cable exit.
- Self-closing water valve lets you service or clean the paddlewheel insert without draining the boat.
- Compatible with Raymarine i40, i50, ST40, ST60, ST60+, iTC-5 and other analog instrument displays.
- Ships with the included P398 countersunk housing option for a flush-mount installation.
What's included
- Raymarine P371 S/T Shorty through-hull transducer (E26008)
- P398 countersunk mounting housing
Specifications
| Brand | Raymarine |
|---|---|
| MPN | E26008 |
| UPC | 723193260081 |
| Product Type | Speed and water temperature through-hull transducer |
| Mounting Style | Through-hull, low-profile, ~5mm (3/16 in) protrusion |
| Minimum Install Headroom | 153 mm (6 in) |
| Overall Height | 75 mm (2.96 in) |
| Cable Length | 10 m (33 ft) with ISO spade connectors |
| Cable Exit | Right-angle |
| Water Valve | Self-closing for maintenance |
| Instrument Compatibility | i40, i50, ST40, ST60, ST60+, iTC-5 and other analog instruments |
| Housing Material | Plastic |
| Included Housing | P398 countersunk housing included for flush mounting |
| Weight | 1.25 lb |
| Box Dimensions | 6 x 6 x 4 in |
| CHIRP | No |
Questions shoppers ask
- What does this transducer measure?
- It measures boat speed and water temperature through the hull. It does not include depth sensing, as it is a speed and temperature transducer only.
- What instruments is the ST300 Shorty compatible with?
- It works with Raymarine i40, i50, ST40, ST60, ST60+, iTC-5 and other analog instrument displays.
- How much clearance do I need below the floor to install this?
- You need a minimum of 153 mm (6 in) of below-floor headroom, and the unit's overall height is 75 mm (2.96 in).
- Does this transducer include CHIRP capability?
- No, this transducer does not support CHIRP.
- Can I service the paddlewheel without hauling the boat out of the water?
- Yes. It has a self-closing water valve that lets you remove and clean or service the paddlewheel insert without draining the boat.
